Classifier¶

Folder Structure¶

classifier/: main package for classifier
- Machine Learning
  - ml/: high-level ML workflows and utilities
  - nn/: neural network models
- Task System
  - task/: task protocols and command-line interface
  - config/: task configurations
  - test/: task configurations for testing
- Monitor System
  - monitor/: monitor core and components
- Others
  - data/: model data archives
  - algorithm/: algorithms implemented with torch.Tensor
  - compatibility/: 4b analysis related modules
  - root/: ROOT I/O utilities
  - df/: pd.DataFrame utilities
  - process/: multiprocessing utilities
  - patch/: unreleased critical bug fixes
pyml.py: run the classifier jobs, can be used as an executable.

Getting Started¶

Setup Environment¶

Note

You are assumed to be in the coffea4bees/python/ directory to run the following commands.

Use Container (Recommended)¶

Warning

You may need to change the apptainer cache and temp directory before pulling any image, especially when the home directory has a limited quota. The directories are controlled by the following environment variables:

export APPTAINER_CACHEDIR=
export APPTAINER_TMPDIR=

The docker image is available as:

docker://chuyuanliu/heptools:ml
/cvmfs/unpacked.cern.ch/registry.hub.docker.com/chuyuanliu/heptools:ml (only when CVMFS is available)

The image is built from the following configurations:

base.Dockerfile: base image
ml.Dockerfile: ml image derived from base image
base.yml: used by base.Dockerfile
base-linux.yml: used by base.Dockerfile
ml.yml: used by ml.Dockerfile

Run the following command to start an interactive shell:

apptainer exec \
    -B .:/srv \
    --nv \
    --pwd /srv \
    docker://chuyuanliu/heptools:ml \
    bash --init-file /entrypoint.sh

where:

-B .:/srv mount the current directory to /srv
--nv enable GPU
--pwd /srv equivalent to cd /srv when starting the container
bash --init-file /entrypoint.sh (important) start a bash shell and run the initialization script.

Use Conda¶

The conda environment can be created from the base.yml, base-linux.yml and ml.yml files listed above. classifier/env.yml is deprecated and not actively maintained.

`rogue01/rogue02` specific¶

change the cache and temp directory for apptainer:

mkdir -p /mnt/scratch/${USER}/.apptainer

add the following to ~/.bashrc

export APPTAINER_TMPDIR=/mnt/scratch/${USER}/.apptainer/
export APPTAINER_CACHEDIR=/mnt/scratch/${USER}/.apptainer/

Command-line Interface¶

See the Task System for details.

Setup Auto-completion¶

To register the auto-completion for the current shell session, run the following command:

source classifier/install.sh

To unregister the auto-completion, run:

source classifier/uninstall.sh

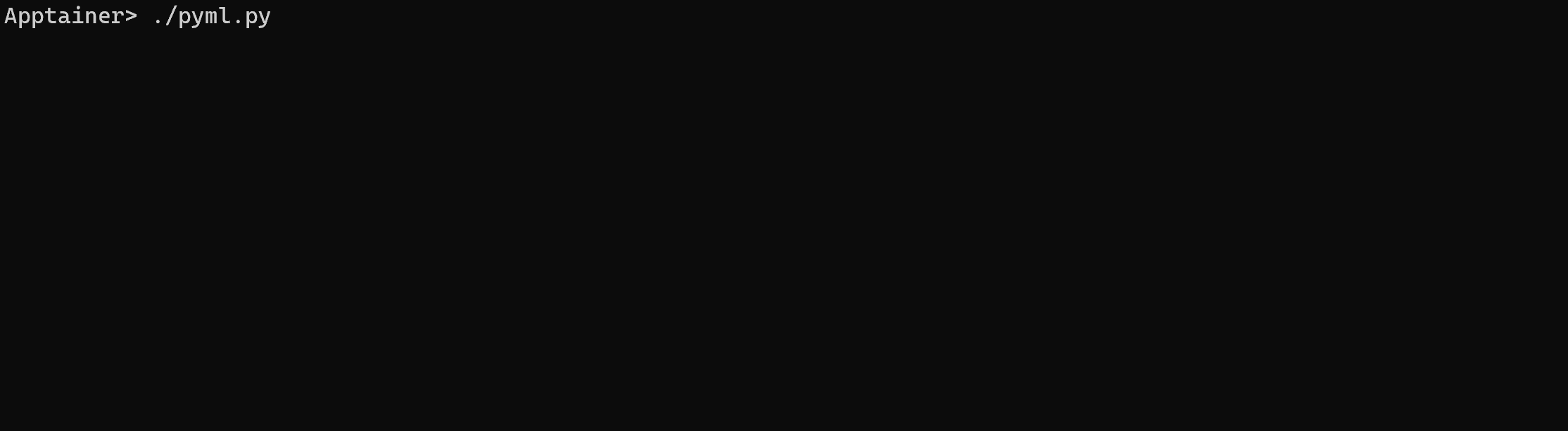

The auto-completion will be triggered when the command starts with ./pyml.py and the <tab> key is pressed. It will dynamically search for available tasks in the classifier/config directory and hint for the task name or the arguments.

Auto-completion example

Help¶

Use the following command to print help for all tasks:

./pyml.py help --all

Training and Evaluation¶

See the HCR Training for a complete example to train and evaluate a HCR model for SvB and FvT.

Monitor¶

A monitor is provided to collect logs, progresses, resource metrics and other information from worker processes/nodes. See the Monitor System for details.

Histogram¶

The histogramming is handled by dask processors for better performance and compatibility. See the Histogram for details.
